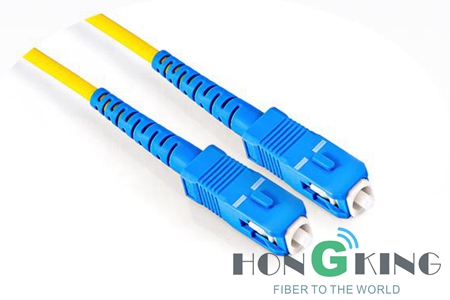

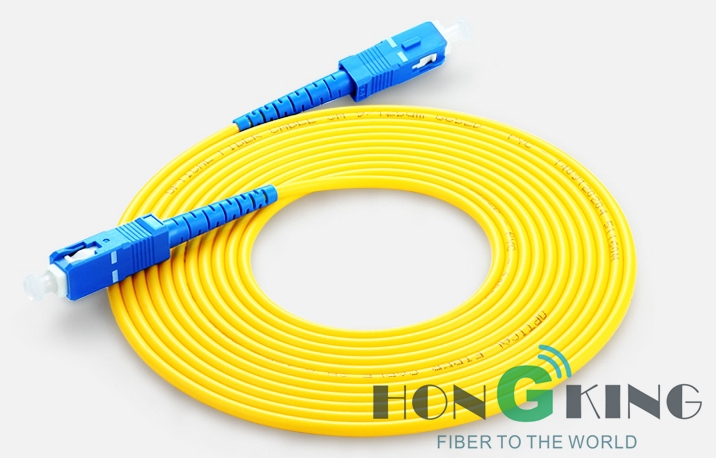

Fiber Optical Patch Cord SC-SC SM SX 9/125um

Item No.: SC-SC SMSX
Send Enquiry

1.Description

SC optic fiber patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

2.Feature

1).Low Insertion loss

2).High return loss

3).Good Repeatability

4).Good Interchange

5).Excellent Environmental Adaptability

3.Application

1).Communication rooms

2).FTTH (Fiber to The Home)

3).LAN (Local Area Network)

4).FOS (fiber optic sensor)

5).Fiber Optic Communication System

6).Optical fiber connected and transmitted equipment

7).Defense combat readiness

4.Specification

pigtail/ patch cord

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

5.Product list

Boot	Connector	Fiber Type	Cable number	Ferrule	Connector
0.9mm 2.0mm 3.0mm	LC FC SC ST MU D4 MTRJ MPO DIN	9/125um SM 50/125um MM 62.5/125um MM OM3 OM4	Simplex Duplex Multi-fiber Ribbon	PC APC UPC	1M 2M 3M4M 5M ......... Customized

Boot

Connector

Fiber Type

Cable number

Ferrule

Connector

0.9mm

2.0mm

3.0mm

MTRJ

MPO

DIN
