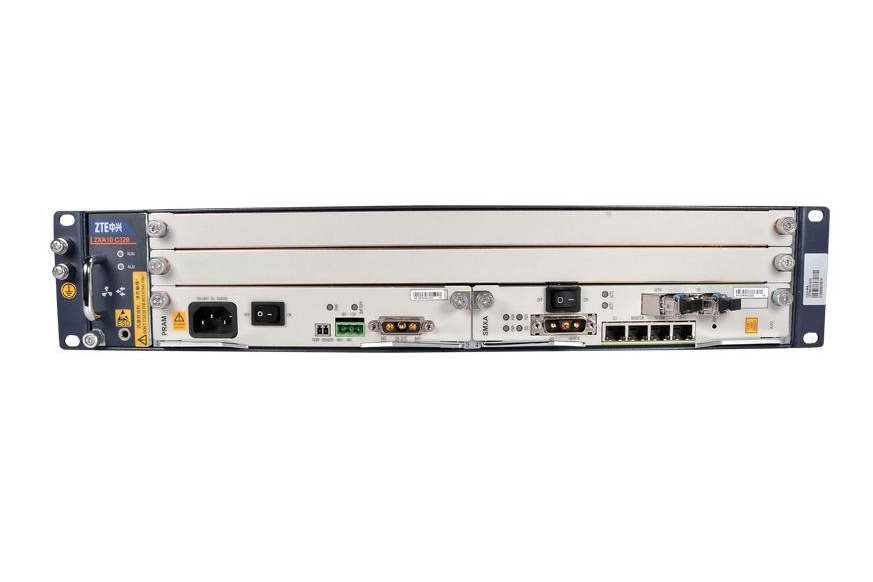

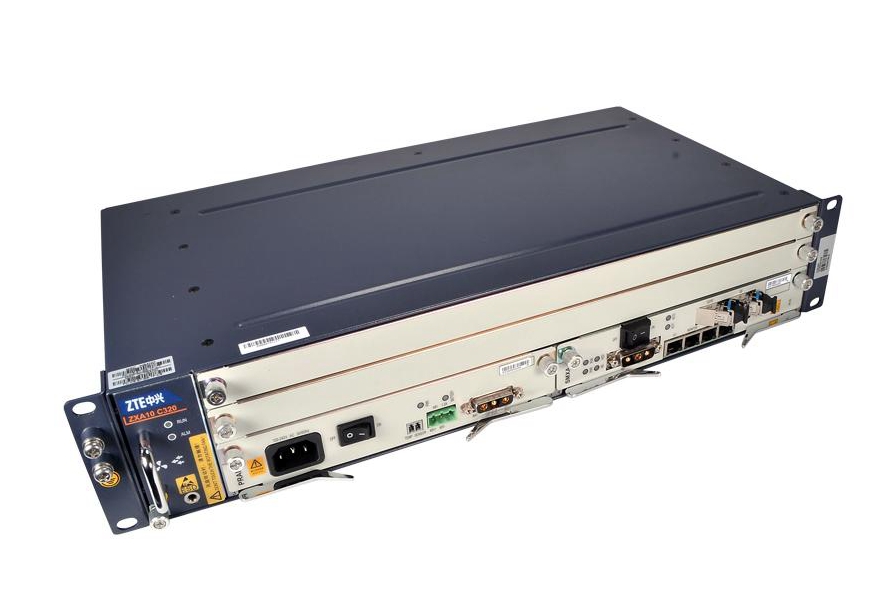

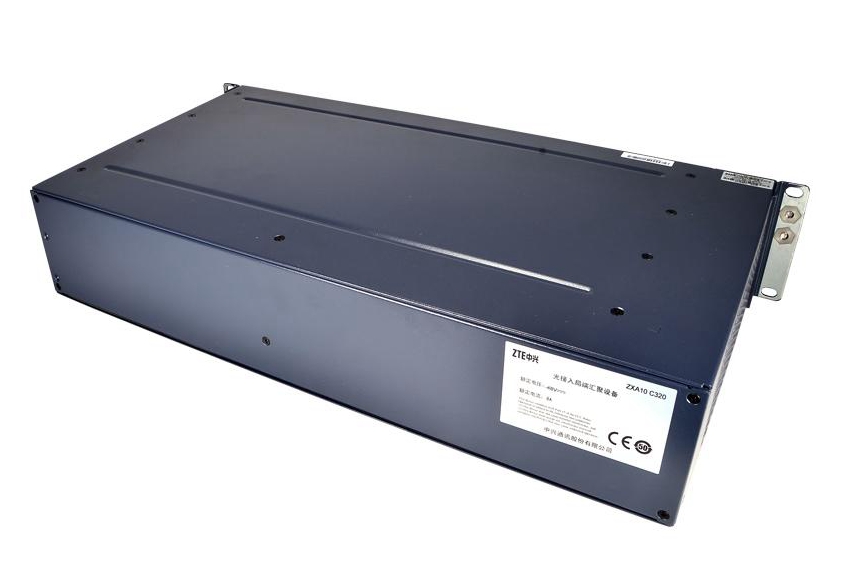

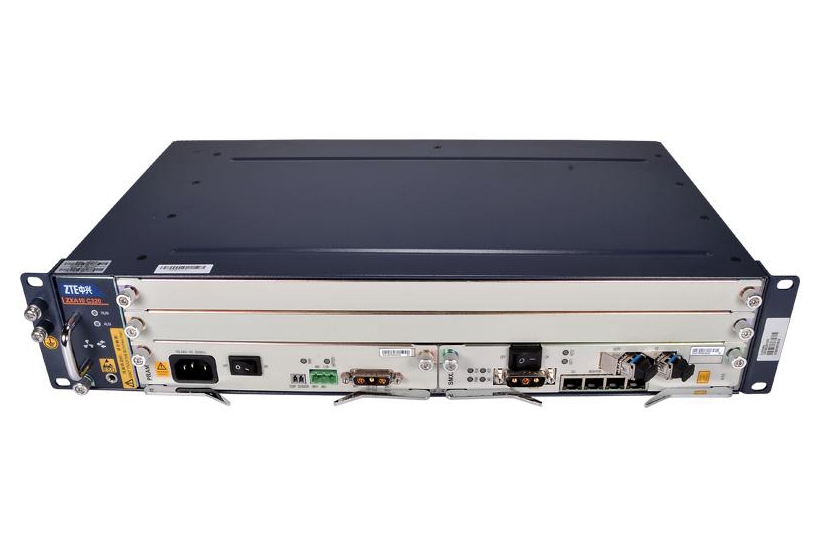

ZTE ZXA10 C320

The ZXA10 C320 Optical Access Convergence Equipment (ZXA10 C320 for short) is a 2U-height OLT device, which satisfies the market requirement for small-capacity OLTs.This manual describes the hardware structure of the ZXA10 C320.

With the requirements of communication services increasing,the value added services (VAS) including 3D network games,video conference/phone,Video on Demand (VoD) and IPTV are key means for operators to provide differential services to attract more subscribers,and gain income growth.

ZTE ZXA10 C320,a small size,full-service optical access convergent platform,provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.

ZTE OLT C320

Dimensions:60x39x25cm

Weight:17 kg (7 kg) empty

Power consumption:GPON < 200W,EPON < 130W

Power Supply:Working voltage: -48 V (±20%) , later will support 220V AC (±20%, 50Hz)

Operating temperature: -5 °C ~45 °C( long term), -25°C ~55°C (short term)

Operating humidity: 5% ~ 95%, non-condensing

Air pressure: 70 kPa - 106 kPa

Key Features

1.Unified platform for GPON,EPON and P2P
2.Small size and compact design, flexible network and fast deployment
3.2U frame with 2 service slots, compatible with ZXA10 C300 line cards
4.Abundant service support capability: IPTV, VoIP,HSI, VPN, mobile backhaul, etc
5.Diverse interfaces: P2MP/P2P /TDM interfaces for business and residential application
6.Higher security assurance: ONT authentication,user ID identification, port isolation, address binding, packet filtering, and broadcast packet suppression.
7.High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ STP/RSTP/MSTP/ZESR for uplink
8.Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.
9.Support DC input redundancy
10.Support 1:1 protection for PON interfaces
11.Support 1:1 protection for SW (core card) card

12.Support Synchronous Ethernet and 1588v2
PON Features
1/EPON compliant with IEEE 802.3ah

2/GPON compliant with ITU G.984.x

3/Support 1:64 optical split ratio for GPON/EPON

4/Support OLS (Optical Laser Supervising )

5/Max logical reach: 60km

6/Max physical reach: 20km

7/Max link difference: 20km

8/High-efficient DBA: NSR-DBA,SR-DBA

9/Support IEEE 1588V2,Synchronous Ethernet

10/Transceiver power budget: Class B+ or class C+

11/Type B and type C optical uplink protection

12/Support FEC

13/Support AES128

14/Support SCB

15/Support 1550nm for third party CATV broadcasting

Security

Ø L2- L4 ACL
Ø IP and MAC source guard
Ø Resistance against DOS attacks
Ø MAC/IP anti-spoofing (MAC binding,IP binding, DHCP snooping)

Ø Anti-flooding: broadcast packet suppression, IGMP packet suppression, DHCP packet suppression

Ø MAC address number limit based on VLAN or GEM-port
Ø Port mirroring
Ø User port identification such as:PPPOE+ and DHCP Option 82
