Dome splice closure 96 cores Type B

Product Description

Vertical (Dome) fiber optic splice closures are made of excellent engineering plastics, they are with different ports types, fitting different fiber counts.  The vertical fiber optic splice closure is used in CATV, telecommunications and fiber optic networks. Our vertical (Dome) fiber splice closures feature the high mechanical  performance, great aging resistant ability, excellent sealing performance. They are suitable for protecting optical fiber splices in straight through and  branching applications. Related fiber optic trays and splice protection sleeves are supplied with the vertical splice closures. These products can be used in aerial,  duct and direct buried fiber optic cable projects.

Feature

1. High quality engineering ABS plastics
2. The closure can be used in duct, buried, overhead..etc
3. Designed for ftth with adapter if need.
4. Fiber storage with big basket
5. Modular fiber management system
6. Cable diameter range: 8~20 mm
7. Sealing way of cables: Mechanical sealing by silicon rubber
8. Quality warranty:2 years
9. IP rating is IP68

Specification

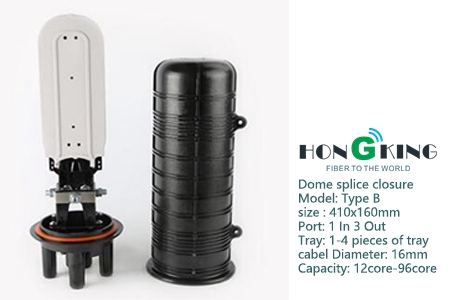

Dome splice closure 96 cores Type B
Size : 410x160mm
Tray: 1-4 pieces of tray
Port: 1 In 3 Out
Support cabel Diameter: 16mm
Capacity: 12core-96core
