HUAWEI ONU

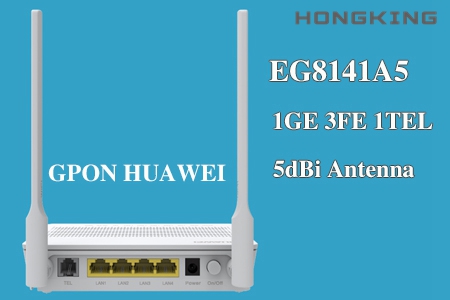

EG8141A5 1GE 3FE 1TEL 5dBi Wifi ONU

Item No.: EG8141A5
Brand: HUAWEI
Model: EG8141A5
Ports: 1GE 3FE 1TEL 5dBi Wifi
Pon: GPON EPON
Send Enquiry

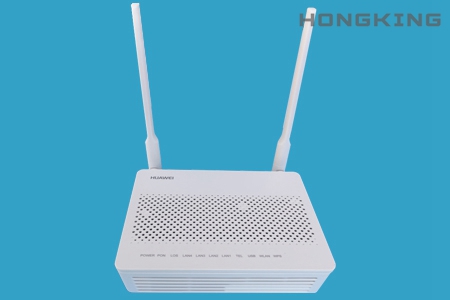

HUAWEI EchoLife EG8141A5

The EchoLife EG8141A5 provides one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the EG8141A5 a perfect choice for broadband access.

Specifications

Parameters	EchoLife EG8141A5
Dimensions (H x W x D)	152 x 105 x 30 mm
Weight	192g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	11 V to 14 V DC, 1.5 A
Staticb Power Consumption	3.1W
Maximum Power Consumption	7.5W
Ports	1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
Optical Connector	SC/APC
Indicators	Power/PON/LOS/LAN/TEL/WLAN/WPS
