Optical Line Terminal Huawei SmartAX MA5680T GPON OLT Optical Line Terminal
The MA5608T Mini OLT is designed to address Fiber to the premise (FTTP) or deep fiber deployment scenarios where a large OLT chassis may not be the best fit for a variety of reasons. Huawei’s mini OLT MA5608T is designed to be the perfect complement to the other MA5600 series larger OLTs and offers the same carrier grade features and performance.
MA5608T’s compact and front access design make it an ideal solution for deployments in locations such as space-constrained huts, outdoor cabinets or building basements. It has AC and DC powering options,extended temperature range, and offers easy installation.
Designed to support ever-increasing bandwidth demand, MA5608T has 200 Gbps backplane. The combination of the high-capacity and line interfaces with best-in-class performance allows the operators to deliver a range of services for maximum revenue at highly competitive cost points.

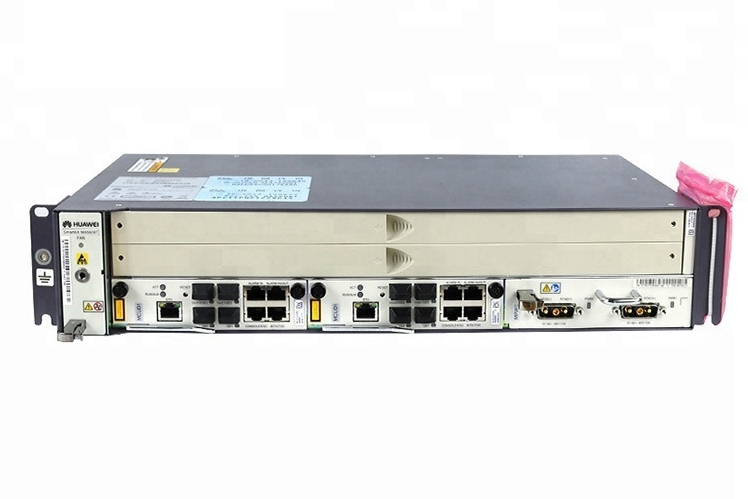

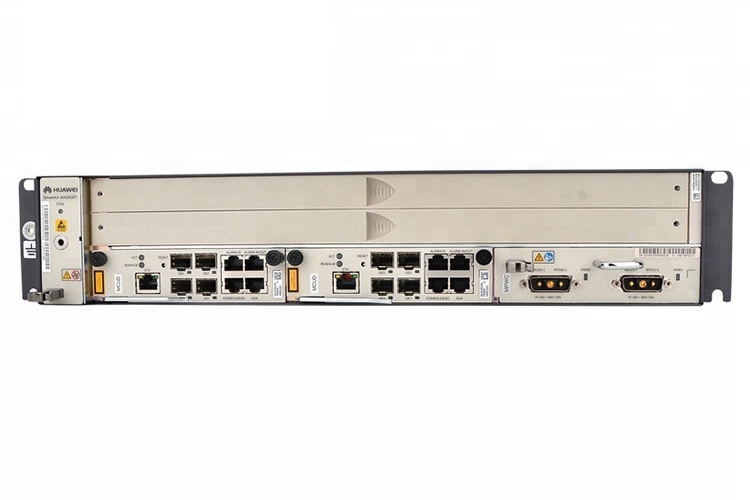

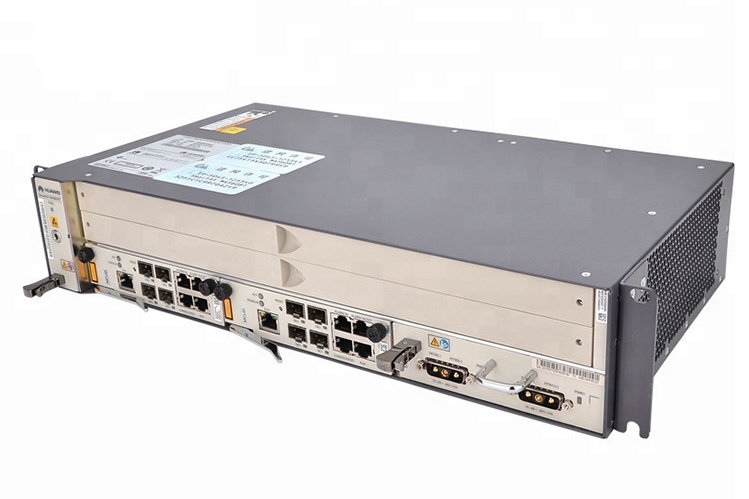

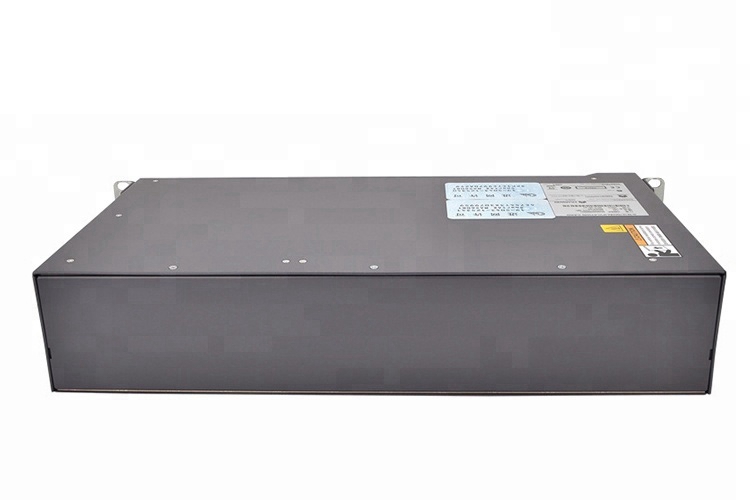

Huawei OLT MA5608T
Powering Options: AC: 100V to 240V
Dimensions (Height x Width x Depth):3.47in x 17.4in x 9.63in
Operating Temperature:-40º F to +149º F
Storage Temperature:-40º F to +158º F
Cooling:Two multispeed fans, providing left to right forced air flow
Weight:12 kg (3.55 kg) empty
Operating Humidity:5% to 85%, non-condensing, Altitude: 197 ft (60 m)below sea level to 13,123 ft (4,000 m) above sea level
| Product Name | OLT Service Subrack |
| Brand | Huawei |
| Mode | MA5608T |
| Packing Size | 59x38.5x18 |
| Gross Weight | 12 |
| Service Board Slots | 2 |
| Interface Board | MCUD+GPFD |
Specification:
