HUAWEI EchoLife EG8120L ONT
An integral part of Huawei’s Fiber To The Home (FTTH) solution, EchoLife EG8010H is an indoor Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to provide ultra-broadband access for home and Small Office/Home Office (SOHO) users. The EG8010H has one Gigabit Ethernet (GE) port and features high-performance service forwarding capabilities, ensuring excellent Internet and High Definition (HD) video service experience.
|
Parameters |
EchoLife EG8120L |
|
Dimensions (H x W x D) |
115 mm x 94 x 30 mm |
|
Weight |
155g |
|
Operating Temperature |
0°C to 40°C |
|
Operating Humidity |
5% RH to 95% RH (non-condensing) |
|
Power Adapter Input |
100 V to 240 V AC, 50 Hz/60 Hz |
|
System Power Supply |
11 V to 14 V DC, 0.5 A |
|
Optical connector |
SC/APC |
|

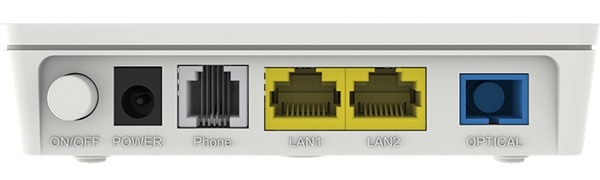

Ports |
1GE 1FE 1TEL |
|
Indicators |
POWER/PON/LOS/LAN/TEL |
Plug-and-Play
Configurations are automatically delivered by the Network Management System (NMS), eliminating the need for on-site commissioning.
Comprehensive Triple Play Service
Abundant ports available to implement multiple access services, including home network attached storage, Internet access, and video.
Energy Efficient
System on Chip (SoC) integrate PON, gateway, and LAN Switch (LSW) modules, realizing up to 25% power savings.
