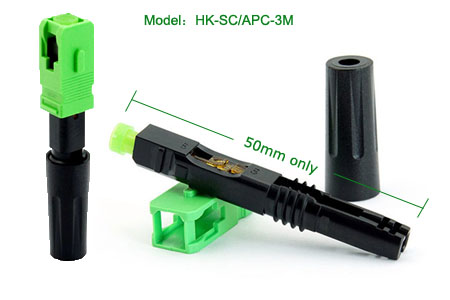

Fiber optic fast connector HK-SC/APC-3M

A: Product Description:

 The fiber optic fast connector is a highly innovative field termination connector that includes factory-installed fiber, pre-cast ceramic ferrule, and a mechanical connection mechanism.

The introduction of fiber or indoor fiber inserted into the mechanical connection mechanism can be, without the help of other tools, termination process as long as 2 minutes or so, greatly saving the installation time.

Fiber optic fast connectors on the market today can be terminated with single-mode fiber and multimode fiber with diameters of 250 μm, 900 μm, 2.0 mm and 3.0 mm

B: Common problem of "normal quality fast connector"

1: High failure rate : the rate of one time success is not high, the insertion loss is large,

    and the fiber matching Gel is easy to lost.

2:Short lifetime: the product don't work well after few days

3:With incomplete statistics, various types of faults are as high as 10%.

C:Our Non_Fused connector system effectively solves the problem Aboved

1: Ferrule is the most important component of  Fiber Connectors
    We use good quality Ceramic Ferrule

2: We Use high quality Special optical grease in stead of norma quality Maching Gel

   The laboratory shows that the average loss time is >25 years,

   and the physical docking requirements of the fiber can be well maintained during the lifetime.

3: Precise V-Grooves and high concentric level  to guarantee the low insert loss and high return loss

4: assembly time ≤ 1 minute, stable connection rate can reach 98% or more
