Brand New HuaWei OLT Smartax Ma5800 Series Ma5800-X7 Optical Line Terminal 10ge Olt

Brand new huawei fiber modem, gpon olt fiber optical equipment,

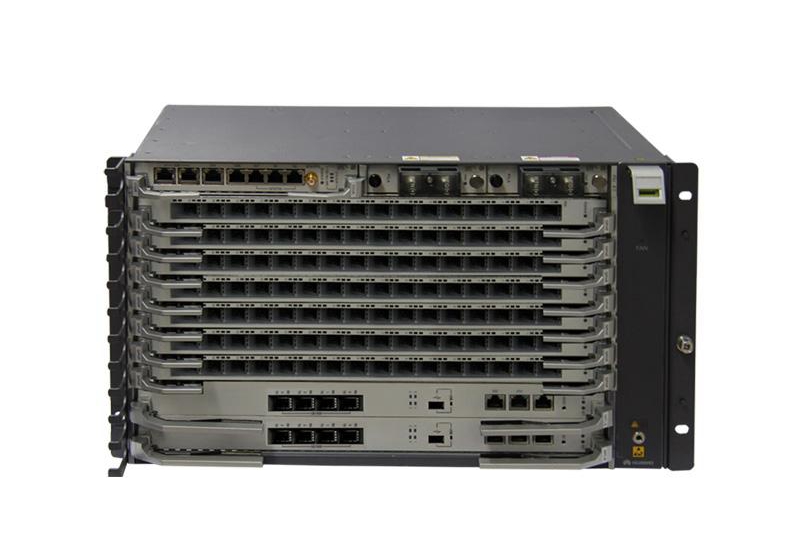

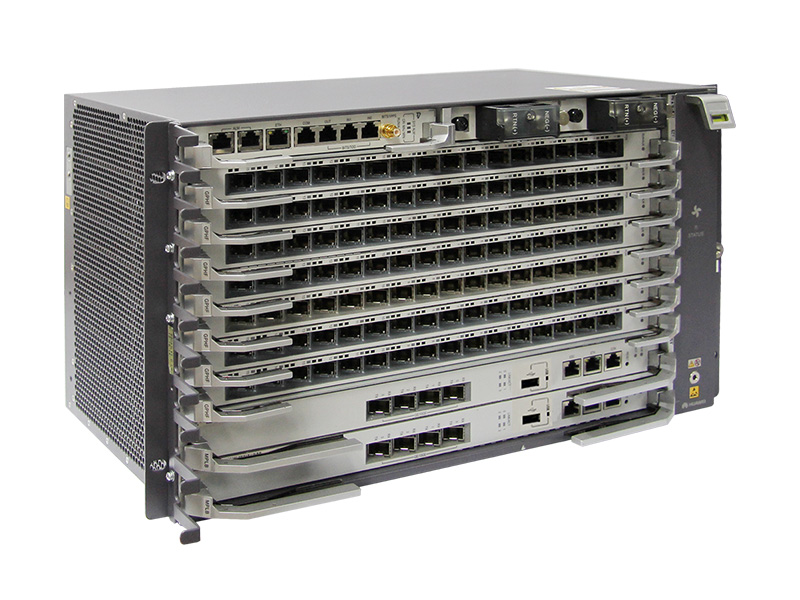

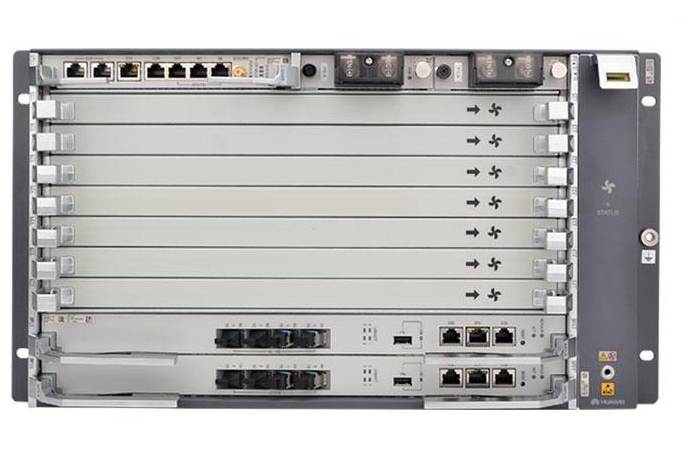

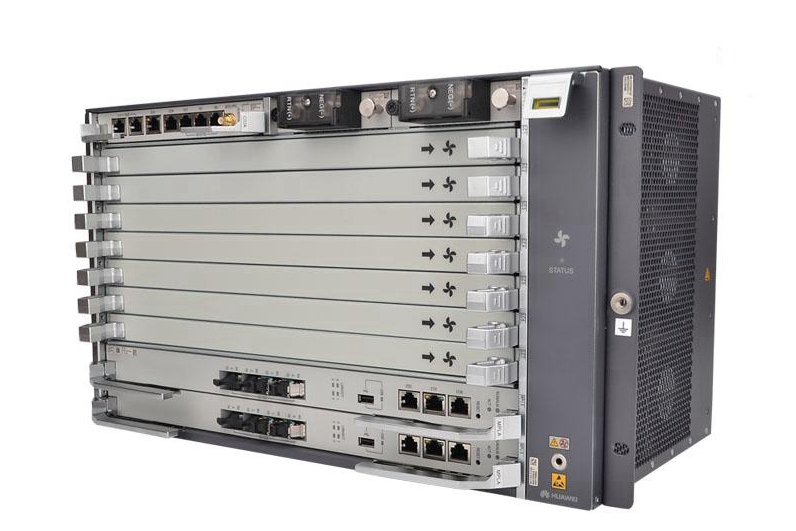

Huawei MA5800-X7 with english version

Product Description

Production description of MA5800-X7:

MA5800 multi-service access equipment is the industry's leading distributed architecture of the intelligent convergence OLT platform, targeting NG-PON for the next generation of OLT. MA5800 is committed to helping customers build a "wider, faster, more intelligent" Into the network, to provide users with a better business experience.

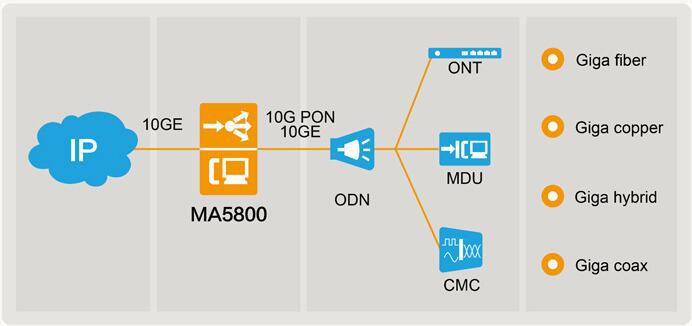

MA5800 provides GPON, 10G GPON, EPON, 10GE EPON, P2P GE and 10GE access, including FTTH, FTTD, FTTB, FTTC and D-CCAP, including home access, enterprise access Into the mobile bearer and WIIF hot return and other business scenarios need to achieve a full-fiber network business.

MA5800 integrates the functions of OLT and aggregation switches to support the convergence of ONT, MDU and campus switches as a large-capacity aggregation device to help simplify the network architecture and reduce OPEX.

Product parameter of the MA5800-X7:

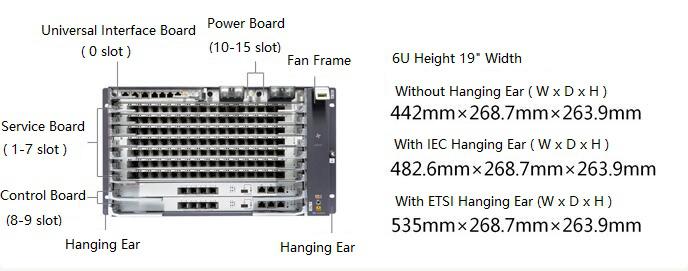

Production Specification:

Product feature and application of the MA5800-X7:

Distributed architecture:

The MA5800 uses the same distributed architecture as the router to distribute the traffic processing on the main control board to each service board to improve the switching capacity and performance of the system. The reliability of the staff is improved.

Centralized: exchange and business processing focused on the master, suitable for low traffic scenarios;

Distributed: exchange in the master, business processing in the business board, suitable for high traffic scenarios;

Best Video Business Experience:

1.MA5800 supports distributed caching for faster 4K / 8K video boot and channel switching.

2.Support vMOS video quality monitoring, board through the built-in probe to achieve the acquisition of video indicators, and remote monitoring and query through the network management results to enhance the video operation and maintenance experience.

3.OLT upgrade process, the video business is not interrupted, enhance the user experience.

40G / 100G PON smooth evolution

1. Single-slot maximum broadband 200Gbit / s, can achieve 16-port 10G GPON access without convergence. 40G / 100G PON smooth evolution does not change the box to protect the investment.

2.MAC / IP address smooth expansion, no need to replace the main control board to achieve business smooth expansion, to meet the multi-service and massive intelligent terminal connection needs.

Product details of the MA5800-X7:

Key Features:

 Layer 2 features:

VLAN + MAC forwarding / SVLAN + CVLAN Forwarding / PPPoE + / DHCP option82

Multicast:

IGMP v2 / v3  / IGMP proxy / IGMP snooping / VLAN - based IPTV multicast

 Three characteristics:

Static routing / RIP / OSFP / OSPFv3  / IS-IS / BGP / BGP4 + / ARP / DHCP relay / VRF

QoS:

Traffic classification / Priority processing / Traffic policing based on trTCM  •WRED

Traffic shaping / HQoS  /  PQ / WRR / PQ + WRR / ACL

MPLS & PWE3

MPLS LDP / MPLS RSVP-TE / MPLS OAM / tunnel protection switching / TDM / ETH PWE3

PW protection switching  / MPLS BGP IP VPN

IPv6:

IPv4 and IPv6 dual stack / IPv6 Layer 2 and Layer 3 forwarding / DHCPv6 relay

System reliability:

GPON type B / type C protection / 10G GPON type B protection  / EPON type B / type D protection

10G EPON type B protection / Board and Board LAG

MSTP / Mainboard ISU (In-Service Software Upgrade) / Dual main control board, dual power supply redundant backup

On-line monitoring and repair / Business overload control

Green Technology:

Compliance with EU CoC (Code of Conduct) V4 energy efficiency standards

Packaging & Shipping

Delivery Time, Shipping, Package and Service of the MA5800-X7:
