HUAWEI ONU

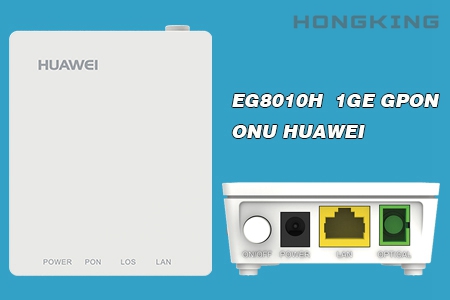

EG8010H 1GE GPON ONU HUAWEI

Item No.: EG8010H
Brand: HUAWEI
Model: EG8010H
Ports: 1GE
PON: GPON
Send Enquiry

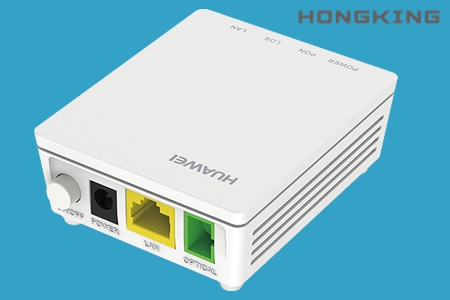

HUAWEI Echolife EG8010H ONT

An integral part of Huawei’s Fiber To The Home (FTTH) solution, EchoLife EG8010H is an indoor Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to provide ultra-broadband access for home and Small Office/Home Office (SOHO) users. The EG8010H has one Gigabit Ethernet (GE) port and features high-performance service forwarding capabilities, ensuring excellent Internet and High Definition (HD) video service experience.

Specifications

Parameters	EchoLife EG8010H
Dimensions (H x W x D)	83 x 69 x 28 mm
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	11 V to 14 V DC, 0.5 A
Network-Side Ports	1 x GPON
User-Side Ports	1 x GE
Indicators	Power/PON/LOS/LAN

Features

Plug-and-Play
Configurations are automatically delivered by the Network Management System (NMS), eliminating the need for on-site commissioning.

Comprehensive Triple Play Service
Abundant ports available to implement multiple access services, including home network attached storage, Internet access, and video.
