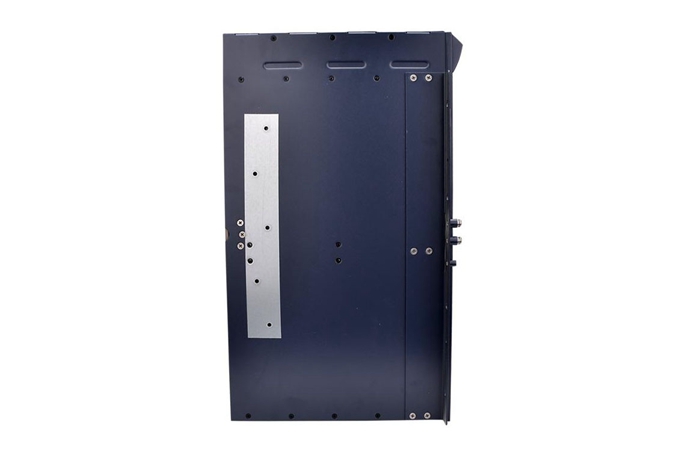

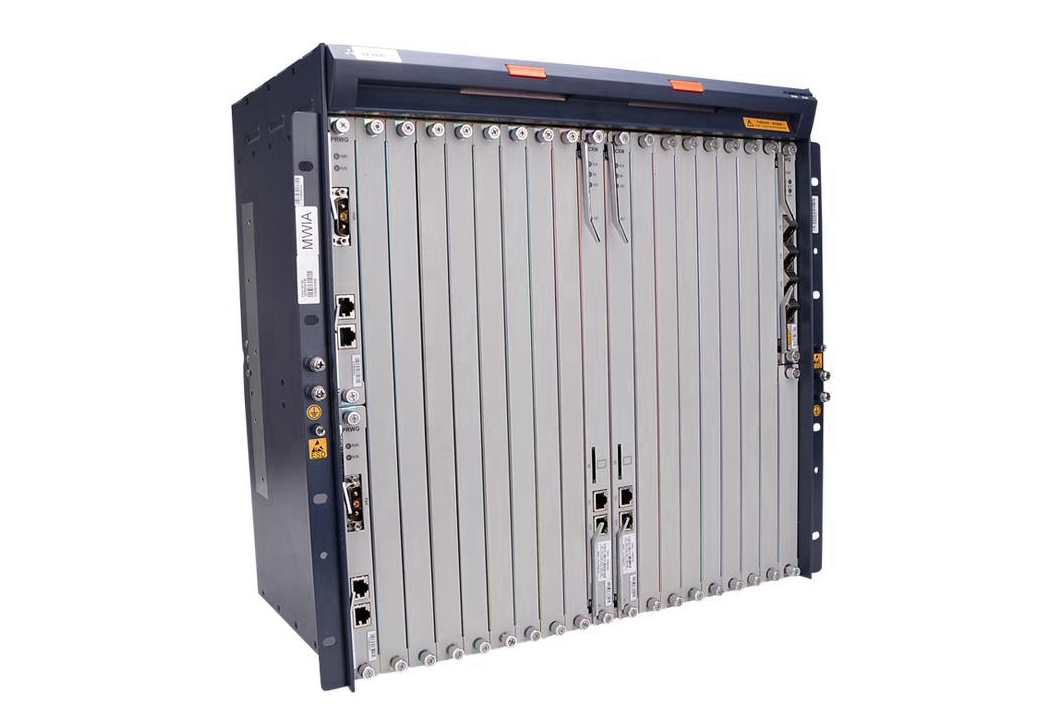

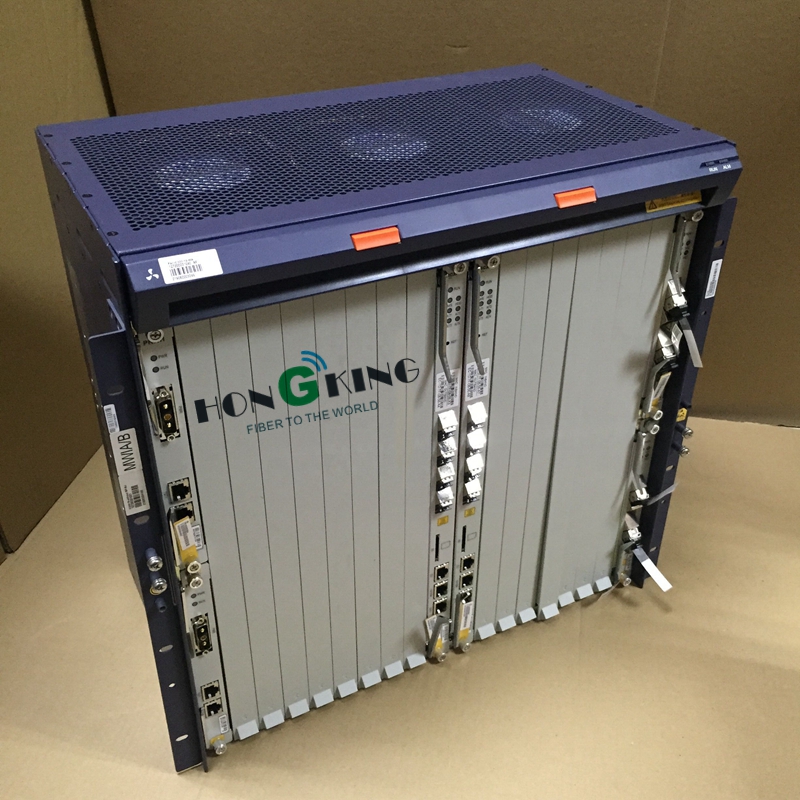

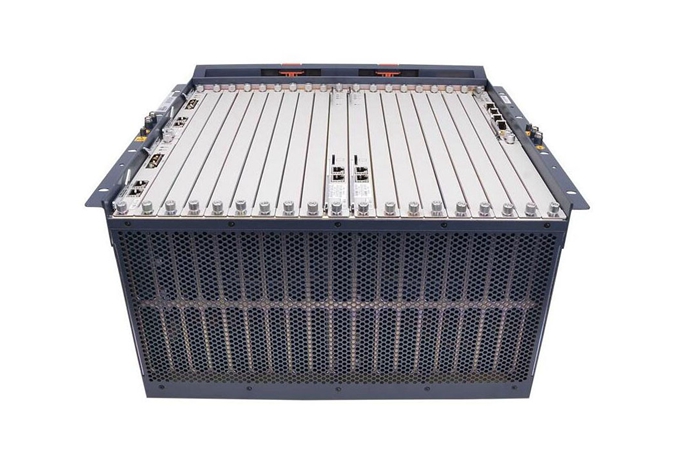

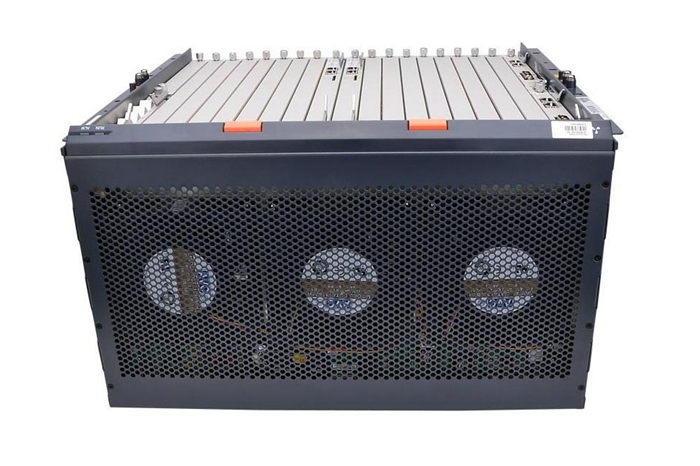

ZTE OLT ZXA10 C300
The ZXA10 C300 allows operators to offer end users high bandwidth, multiple services, QoS and security efficiently and reduces the TCO. It provides stable technology and service platform for full-service access and management such as HSI, VoIP, TDM, IPTV, and mobile backhaul,etc.
ZTE ZXA10 C300 configuration:
2pcs SCXM control board; (SCXL For Option)
1pc GPON or EPON 8 ports board with 8 Modules; (GTGH ETGH16Ports for Option)
2pcs GUFQ board(4SFP Slot), 2 uplink modules on each;(HUTQ( 10G Uplink)
GUSQ(2SFP Slot & 2RJ 45 GE Ports) Board for Optioin)
2pcs PRWG power boards; (AC to DC Power Converter have to buy separately)
2pcs Power cables
1pc RJ-45 first turn 9-pin RS-232 female network cable
1pc RJ-45 Network cable
1pc Earth Cable
Unified platform architecture
Delivers integrated access for GPON, EPON, P2P, 10G-EPON, XG-PON1 and TWDM-PON, achieve initial investment protection and smooth evolution.
Excellent capability
Fully meets the high-bandwidth network requirements with high system integration, large backplane bandwidth, high-density service cards, and non-blocking switching capability.
Higher reliability and protection
Provides boards redundancy and hot swappable, support type B and type C protection for PON downlink and RSTP/UAPS/ERPS/LACP for uplink.
Perfect clock/time synchronization
Provides BITS, 1PPS+ToD, IEEE 1588V2, and synchronous Ethernet to deliver comprehensive time and clock synchronization.
Powerful QoS control and TDM capability
Supports three-level H-QoS based on service provider, user, and service, provides TDM service bearing with STM-4, STM-1, E1, and T1.
Eco-friendly design
Supports multiple ways to lower the power consumption and complies with the Europe CoC, RoHS standards.

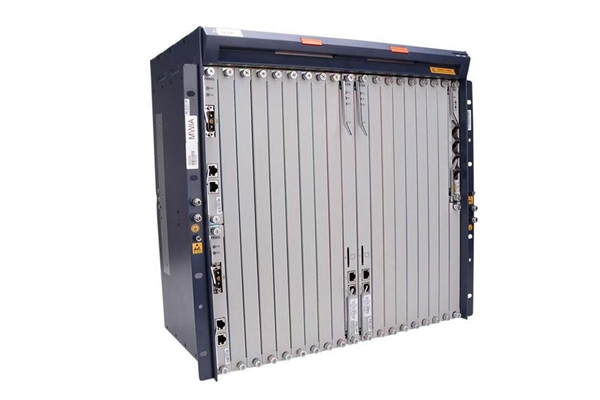

Chassis Configuration (19”)
Total 21 slots
14 slots for universal line cards
2 slots for switch& control cards
2 slots for power cards
2 slots for uplink and cascading interfaces
1 slot for environment detecting card
Specification:
|
Parameter |
ZTE ZXA10 C300 |
|
|
Capacity and Performance |
Backplane Capacity(bps) |
3.2T |
|
Exchange Capacity(bps) |
800G |
|
|
MAC address capacity |
MAX512K |
|
|
Main control exchange board |
2(main and spare) |
|
|
Service board |
14 |
|
|
EPON capacity |
single board:8*PON; single chassis:112*PON |
|
|
typical configuration:224*PON/chassis |
||
|
Uplink interface |
GE |
Single board: 4*GE(4 optical); |
|
4*GE(4 electric); |
||
|
2*GE(optical)+2*10M/100M/1000M(electric); |
||
|
Chassis:8*GE,MAX 136*GE |
||
|
10GE |
Per board:4*10GE(optical); |
|
|
Chassis:8*10GE |
||
|
User interface |
PTP |
Per board:16*FE or GE |
|
Chassis:16 services slots,256*FE or GE |
||
|
TDM interface |
E1/T1 |
Per card:32*E1/T1; |
|
Chassis:16 service slots,512*E1/T1 |
||
|
STM-1/STM-4 |
Per board:2*STM-1or 1*STM-4; |
|
|
Chassis:16 service slots,32*STM-1 or 16*STM-4 |
||
|
BITS interface |
BITS |
2input/1output or 1input/2output |
|
Power |
|
2lineDC(-48V) |
|
|
DC:-38V~-57V |
|
|
Electrical Properties |
Dimension(mm) |
19inch chassis 482.6*443.7*270mm |
|
10U(9U insert box+1U fan) |
||
|
Weight |
36.6kg(full) |
|
|
Heat |
Fan |
|
|
Install |
Rack |
|
Delivery Time, Shipping, Package and Service of ZXA10 C300:
|
Delivery Time: |
5-10working days after we receive the payment |
|
Shipping: |
By DHL; By Air; By Sea |
|
Package: |
Original Huawei Pakcage |
|
Service: |
Technical support; 1 year warranty |
