PLC Splitter

Fiber optic Modular PLC Splitter 1*16 SC/APC

Item No.: Modular PLC Splitter 1*16 SA
Send Enquiry

Description

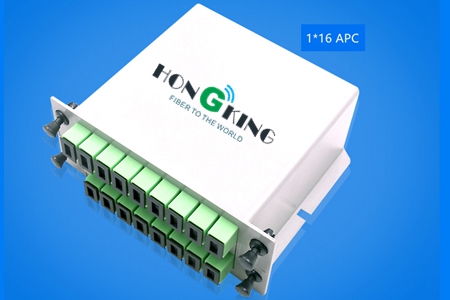

Fiber optic Modular PLC splitter 1*16 SC/APC

Are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. The PLCS devices have high performance in terms of low insertion loss, low PDL high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40C to +85C. The PLCS devices have standard configurations of 1x4, 1x8, 1x16 and 1x32 configurations, as well as customized structures of 2x8, 2x16, 2x32 and 2x64

Feature

Low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical Stability

Telcordia GR-1221 and GR-1209

Available in dual/three wavelength operation

Optional connectors termination upon request

Available in 250um & 900um fiber, 2mm or 3mm

Application

FTTH, LAN, PON & Optical CATV

Local ring net, Optical fiber communication system

Optical fiber test equipment, Optical fiber sensor
