ZTE OLT & BOARD

  • ZTE F663N V3a GPON ONT 1GE 3FE 1USB 1TEL WiFi
  • ZTE F663N V3a GPON ONT 1GE 3FE 1USB 1TEL WiFi
  • ZTE F663N V3a GPON ONT 1GE 3FE 1USB 1TEL WiFi
ZTE F663N V3a GPON ONT 1GE 3FE 1USB 1TEL WiFi ZTE F663N V3a GPON ONT 1GE 3FE 1USB 1TEL WiFi ZTE F663N V3a GPON ONT 1GE 3FE 1USB 1TEL WiFi

ZTE F663N V3a GPON ONT 1GE 3FE 1USB 1TEL WiFi

  • Item No.: ZTE F663N V3a GPON ONT
  • Brand: ZTE
  • Model: F663N
  • Ports: 1GE 3FE 1TEL WiFi
  • Application: FTTH
  • Send Enquiry

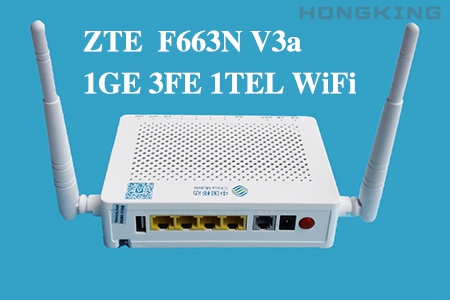

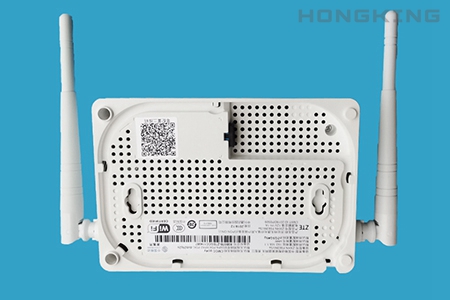

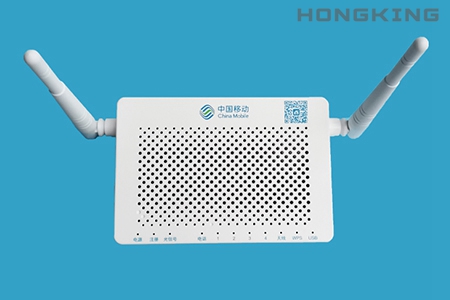

ZTE F663N V3a GPON ONT                  1GE 3FE 1USB 1TEL WiFi



ZTE F663N V3a GPON ONT is a GPON Optical Network Terminal designed for FTTH. As a gpon onu, It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage

Specifications



Model

ZTE ZXHN F663N V3a

Dimensions (H x W x D)

175x136 x 28mm

Weight

255g / 420g (Include Package)

Operating Temperature

0°C to 40°C

Operating Humidity

5% RH to 95% RH (non-condensing)

Power Adapter Input

100 V to 240 V AC, 50 Hz/60 Hz

System Power Supply

11 V to 14 V DC, 1 A

Ports

1GE 3FE 1TEL 1USB WiFi

Optical Connector

SC / APC

Indicators

Power/PON/LOS/internet/wifi/LAN/USB



Features

· Supported service: VoIP, Internet, IPTV

· GPON: 8 T-CONTs, 32 GEM Ports

· VLAN: 802.1Q, 802.1P, 802.1ad

· MAC address table: 1K

· L3 function: DHCP server/Client, DNS Client, NAT

· IPv6: Dual Stack, DS-Lite

· VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38

· Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS

· Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise

· Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping

· Multicast group per user port: 256

· QoS: service flow classification based on a physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR

· Management: local web management, OMCI, TR069

· Management: local web management, OMCI
