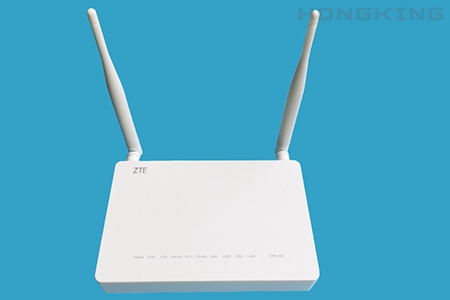

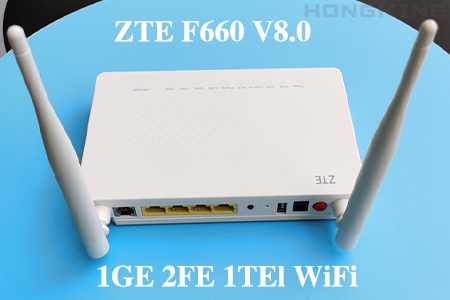

ZTE F660 V8.0 GPON ONU 1GE 2FE 1TEL WiFi

ZTE F660 V8.0 GPON ONT is ZTE FTTH solutions in the high-end home gateway. UWB Access for home and Soho users using GPON technology. F660 V8.0 provides a phone port, a 1ge + 3fe adaptive Ethernet port, a USB port and a 2.4 g wi-fi. The F660 V8.0 has a high performance forwarding capability to ensure superior delivery of VOIP, Internet and Wifi services.

Specifications

Features

· Supported service: VoIP, Internet, IPTV

· GPON: 8 T-CONTs, 32 GEM Ports

· VLAN: 802.1Q, 802.1P, 802.1ad

· MAC address table: 1K

· L3 function: DHCP server/Client, DNS Client, NAT

· IPv6: Dual Stack, DS-Lite

· VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38

· Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS

· Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise

· Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping

· Multicast group per user port: 256

· QoS: service flow classification based on a physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR

· Management: local web management, OMCI, TR069

· Management: local web management, OMCI
