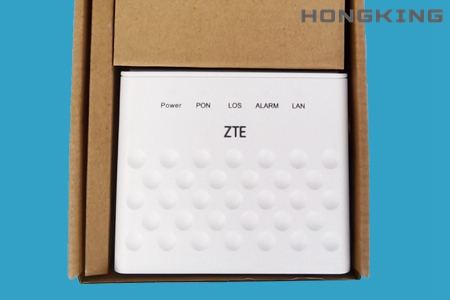

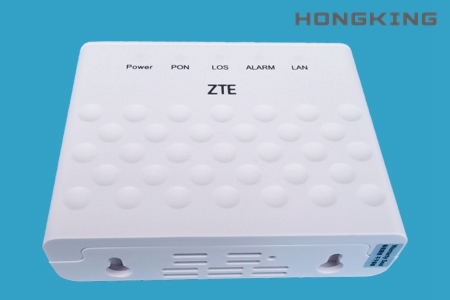

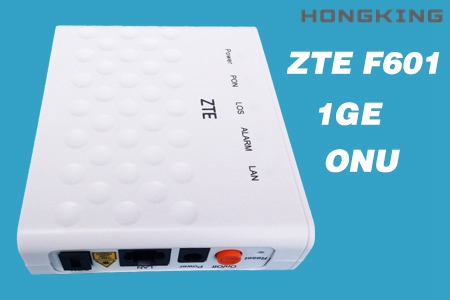

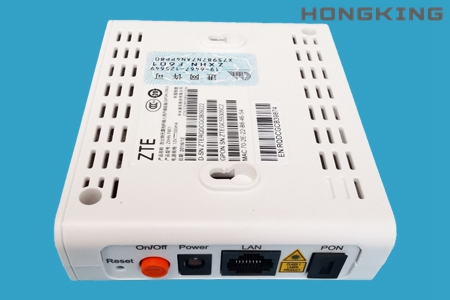

ZTE F601 1GE GPON ONU

ZTE F601 FTTH is a GPON Optical Network Terminal designed for FTTH. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage. ZTE GPON ONT Series of ONTs for FTTX deployment scenarios cover various user interfaces: FE, GE, POTS, RF, Wi-Fi, USB and suitable for digital home networks. They are supporting the latest Wi-Fi 802.11n technology for higher bandwidth access. Easy OAM saves OPEX – support TR069, zero-touch and batch configuration. All EDGE Technologies provided ZTE GPON ONT has Multiple certifications – CE, FCC, RoHS, CoC, Wi-Fi.

Specifications

Features

· Supported service: Internet, IPTV

· GPON: 8 T-CONTs, 32 GEM Ports

· VLAN: 802.1Q, 802.1P, 802.1ad

· MAC address table: 256

· Multicast: IGMP v1/v2 Snooping

· Multicast group per user port: 256

· QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
