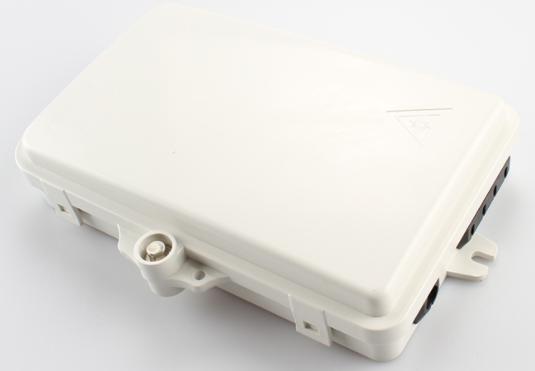

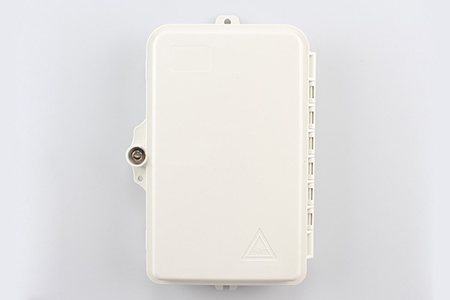

4 core optical fiber distribution box

Description:

 4 core optical fiber distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.as a termination point for the drop cable to connect with patch cable in FTTH indoor application.

Products Information

Material:ABS/PC

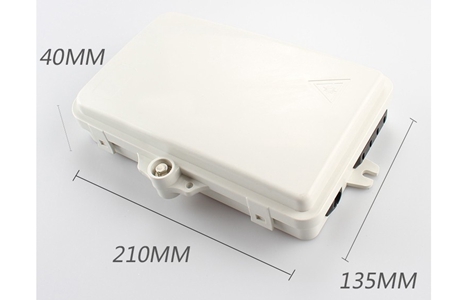

Size:210*135*40mm

Weight: 0.3kg

Capacity: 4 core

Features :

Total enclosed structure, be in nice shape.

wet-proof, dust-proof, UV protection.

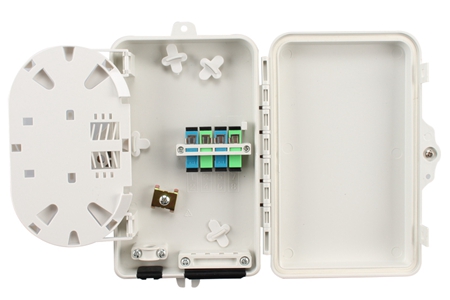

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.cable, pigtails, patch cords are running through own path without disturbing each other, cassette type  SC adapter installation, easy maintenance.

Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

Cabinet can be installed by the way of wall-mounted, suitable for both indoor and outdoor uses

Application :

Optical fiber communications system

Optical fiber access networks

Optical fiber CATV
